ScadaBridge

ScadaBridge is a centrally-managed, distributed SCADA configuration and deployment platform built on Akka.NET, running across a central cluster and multiple site clusters in a hub-and-spoke topology.

Overview

This repository is the full implementation project for ScadaBridge — the C#/.NET source (src/), tests (tests/), deployable Docker topology (docker/, docker-env2/, infra/), and the design documentation (docs/) that the code implements. This README is the master index: it links the per-component design specs (the spec the code in src/ implements) and shows the system architecture. The solution file is ZB.MOM.WW.ScadaBridge.slnx.

Technology Stack

Layer	Technology
Runtime	.NET, Akka.NET (actors, clustering, remoting, persistence, streams)
Central UI	Blazor Server (ASP.NET Core + SignalR)
Inbound API	ASP.NET Core Web API (REST/JSON)
Central Database	MS SQL Server, Entity Framework Core
Site Storage	SQLite (deployed configs, S&F buffer, event logs)
Authentication	Direct LDAP/AD bind (LDAPS/StartTLS), JWT sessions
Notifications	Delivered from the central cluster (SMTP, OAuth2/Microsoft 365); store-and-forwarded from sites
Hosting	Windows Server, Windows Service
Cluster	Akka.NET Cluster (active/standby, keep-oldest SBR)
Logging	Serilog (structured)

Scale

• Central cluster: 2-node active/standby behind a load balancer.
• Site clusters: 2-node active/standby, headless (no UI).

Repository Layout

Path	Contents
src/	C#/.NET implementation — one project per component (ZB.MOM.WW.ScadaBridge.<Component>). Solution: ZB.MOM.WW.ScadaBridge.slnx.
tests/	Unit and integration test projects.
docs/	Design documentation — docs/requirements/ (high-level + per-component specs, the spec the code implements), docs/test_infra/, docs/plans/.
docker/	Primary 8-node cluster topology (2 central + 3 sites × 2 nodes + Traefik) + deploy.sh.
docker-env2/	Minimal second cluster (2 central + 1 site) for exercising Transport (#24) against a real second environment.
infra/	Local test services (MS SQL, LDAP, OPC UA, SMTP, REST API, Traefik).
deploy/	Production/on-host deployment artifacts (e.g. wonder-app-vd03/).
AkkaDotNet/	Akka.NET reference notes.

Build, Test & Run

# Build the solution
dotnet build ZB.MOM.WW.ScadaBridge.slnx

# Run the tests
dotnet test ZB.MOM.WW.ScadaBridge.slnx

# Bring up the primary local cluster (builds the scadabridge:latest image + recreates containers)
bash docker/deploy.sh        # central load balancer at http://localhost:9000

# Drive the system from the CLI (reads ~/.scadabridge/config.json; test user has all roles)
dotnet run --project src/ZB.MOM.WW.ScadaBridge.CLI -- \
  --username multi-role --password password template list

See docker/README.md for ports and management commands, and src/ZB.MOM.WW.ScadaBridge.CLI/README.md for the full CLI reference.

Local Test Environments

Two Docker-based cluster topologies are available for local development and testing:

• Primary (docker/) — Full topology (2 central + 3 sites × 2 nodes + Traefik). Default development target.
• Env2 (docker-env2/) — Minimal sibling stack (2 central + 1 site × 2 nodes + Traefik), runs concurrently with primary on host ports 91XX. Purpose: exercise the Transport (#24) bundle export/import feature against a real second environment.

Both stacks share the infrastructure services in infra/ (MS SQL, LDAP, SMTP, OPC UA, REST API).

Document Map

Requirements

• HighLevelReqs.md — Complete high-level requirements covering all functional areas.

Component Design Documents

#	Component	Document	Description
1	Template Engine	docs/requirements/Component-TemplateEngine.md	Template modeling, inheritance, composition, path-qualified member addressing, override granularity, locking, alarms, native alarm source bindings, flattening, semantic validation, revision hashing, diff calculation, and folder organization (nested folders, drag-drop).
2	Deployment Manager	docs/requirements/Component-DeploymentManager.md	Central-side deployment pipeline with deployment ID/idempotency, per-instance operation lock, state transition matrix, all-or-nothing site apply, system-wide artifact deployment with per-site status.
3	Site Runtime	docs/requirements/Component-SiteRuntime.md	Site-side actor hierarchy with explicit supervision strategies, staggered startup, script trust model (constrained APIs), Tell/Ask conventions, concurrency serialization, site-wide Akka stream with per-subscriber backpressure, and a read-only Native Alarm Actor (peer to the computed Alarm Actor) mirroring native OPC UA A&C / MxAccess alarms with site SQLite persistence.
4	Data Connection Layer	docs/requirements/Component-DataConnectionLayer.md	Common data connection interface (OPC UA, MxGateway, custom), Become/Stash connection actor model, auto-reconnect, immediate bad quality on disconnect, transparent re-subscribe, synchronous write failures, tag path resolution retry, protocol-agnostic address-space browse, and optional read-only native alarm mirroring (IAlarmSubscribableConnection, one alarm feed per connection with snapshot replay).
5	Central–Site Communication	docs/requirements/Component-Communication.md	Dual transport: Akka.NET ClusterClient (command/control) + gRPC server-streaming (real-time data). 9 message patterns with per-pattern timeouts, SiteStreamGrpcServer/Client, application-level correlation IDs, transport heartbeat config, gRPC keepalive, message ordering, connection failure behavior. The gRPC stream additively carries the read-only native alarm mirror (computed + native OPC UA / MxAccess) via the enriched AlarmStateUpdate.
6	Store-and-Forward Engine	docs/requirements/Component-StoreAndForward.md	Buffering (transient failures only), fixed-interval retry, parking, async best-effort replication, SQLite persistence at sites.
7	External System Gateway	docs/requirements/Component-ExternalSystemGateway.md	HTTP/REST + JSON, API key/Basic Auth, per-system timeout, dual call modes (Call/CachedCall), transient/permanent error classification, dedicated blocking I/O dispatcher, ADO.NET connection pooling.
8	Notification Service	docs/requirements/Component-NotificationService.md	Central-only — manages typed notification-list and SMTP definitions, supplies per-type delivery adapters (SMTP with OAuth2 (M365) or Basic Auth, BCC, plain text); delivery performed by the Notification Outbox.
9	Central UI	docs/requirements/Component-CentralUI.md	Blazor Server with SignalR real-time push, load balancer failover with JWT, all management workflows.
10	Security & Auth	docs/requirements/Component-Security.md	Direct LDAP bind (LDAPS/StartTLS), JWT sessions (HMAC-SHA256, 15-min refresh, 30-min idle), role-based authorization, site-scoped permissions.
11	Health Monitoring	docs/requirements/Component-HealthMonitoring.md	30s report interval, 60s offline threshold, monotonic sequence numbers, raw error counts, tag resolution counts, dead letter monitoring.
12	Site Event Logging	docs/requirements/Component-SiteEventLogging.md	SQLite storage, 30-day retention + 1GB cap, daily purge, paginated remote queries with keyword search.
13	Cluster Infrastructure	docs/requirements/Component-ClusterInfrastructure.md	Akka.NET cluster, keep-oldest SBR with down-if-alone, min-nr-of-members=1, 2s/10s/15s failure detection, CoordinatedShutdown, automatic dual-node recovery. The ClusterInfrastructure project owns the ClusterOptions config model; the Akka bootstrap/SBR/CoordinatedShutdown wiring lives in the Host.
14	Inbound API	docs/requirements/Component-InboundAPI.md	POST /api/{methodName}, X-API-Key header, flat JSON, extended type system (Object/List), script-based implementations, failures-only logging.
15	Host	docs/requirements/Component-Host.md	Single deployable binary, role-based component registration, per-component config binding (Options pattern), readiness gating, dead letter monitoring, Akka.NET bootstrap, ASP.NET Core hosting for central.
16	Commons	docs/requirements/Component-Commons.md	Namespace/folder convention (Types/Interfaces/Entities/Messages), shared data types, POCOs, repository interfaces, message contracts with additive-only versioning, UTC timestamp convention, the unified read-only alarm condition model (AlarmConditionState/AlarmKind), and native alarm source entities + the IAlarmSubscribableConnection capability seam.
17	Configuration Database	docs/requirements/Component-ConfigurationDatabase.md	EF Core data access, per-component repositories, unit-of-work, optimistic concurrency on deployment status, audit logging (IAuditService), migration management (incl. the AddNativeAlarmSources migration + native alarm source repository CRUD).
18	Management Service	docs/requirements/Component-ManagementService.md	Akka.NET ManagementActor on central, ClusterClientReceptionist registration, programmatic access to all admin operations, CLI interface.
19	CLI	docs/requirements/Component-CLI.md	Standalone command-line tool, System.CommandLine, HTTP transport via Management API, JSON/table output, mirrors all Management Service operations.
20	Traefik Proxy	docs/requirements/Component-TraefikProxy.md	Reverse proxy/load balancer fronting central cluster, active node routing via /health/active, automatic failover.
21	Notification Outbox	docs/requirements/Component-NotificationOutbox.md	Central component ingesting store-and-forwarded notifications into the Notifications audit table, with NotificationOutboxActor singleton dispatcher, per-type delivery adapters, retry/parking, status tracking, daily purge, and delivery KPIs.
22	Site Call Audit	docs/requirements/Component-SiteCallAudit.md	Central component auditing site cached calls (ExternalSystem.CachedCall/Database.CachedWrite) into the SiteCalls audit table, with SiteCallAuditActor singleton, telemetry ingest, periodic reconciliation, point-in-time KPIs, daily purge, and central→site Retry/Discard relay for parked calls.
23	Audit Log	docs/requirements/Component-AuditLog.md	New central append-only AuditLog spanning every script-trust-boundary action (outbound API sync+cached, outbound DB sync+cached, notifications, inbound API). Site-local SQLite hot-path append + gRPC telemetry + central reconciliation; combined telemetry packet with Site Call Audit; central direct-write for Notification Outbox dispatch + Inbound API middleware; monthly partitioning, 365-day default retention.
24	Transport	docs/requirements/Component-Transport.md	Bundle export/import for templates, shared scripts, external systems, central-only artifacts. AES-256-GCM encryption; per-conflict resolution on import; correlated audit trail.

Shared UI sub-component (not a top-level component): TreeView — reusable hierarchical tree/grid Blazor component used by the Central UI (#9) for the templates folder hierarchy, data-connection browse, and tag pickers.

Reference Documentation

• AkkaDotNet/ — Akka.NET reference notes covering actors, remoting, clustering, persistence, streams, serialization, hosting, testing, and best practices.
• docs/plans/ — Design decision documents from refinement sessions.

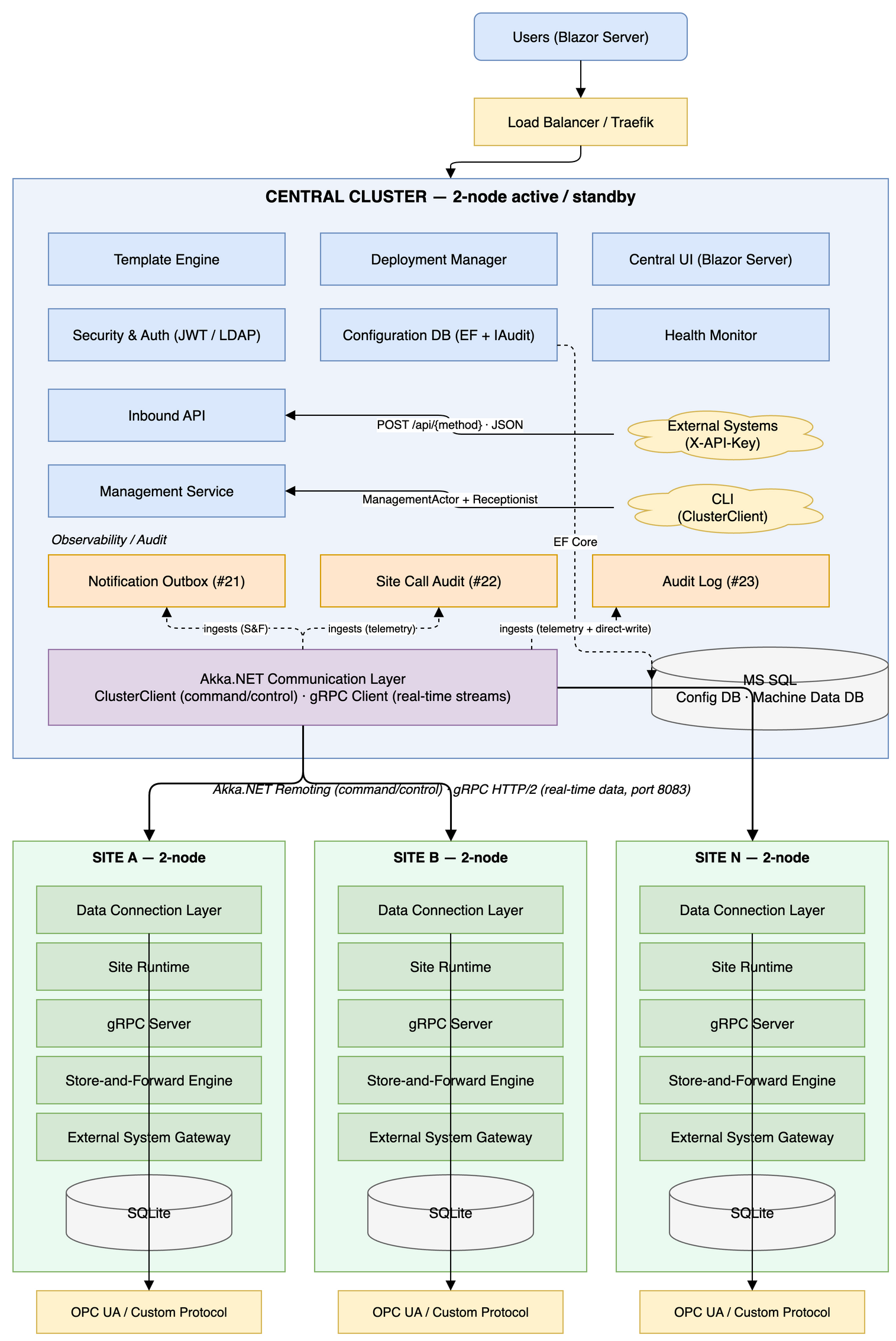

Architecture Diagram (Logical)

Site Runtime Actor Hierarchy

%%{init: {'theme':'base', 'themeVariables': {'textColor':'#111111','lineColor':'#555555','edgeLabelBackground':'#ffffff','fontSize':'15px'}}}%%
flowchart TD
    DMS["Deployment Manager Singleton<br/>(Cluster Singleton)"]
    IA["Instance Actor<br/>(one per deployed, enabled instance)"]
    IA2["Instance Actor<br/>( … )"]
    MOREIA["… more Instance Actors"]
    DMS --> IA
    DMS --> IA2
    DMS -.-> MOREIA

    SA["Script Actor<br/>(coordinator, one per instance script)"]
    AA["Alarm Actor<br/>(coordinator, one per alarm definition)"]
    MORE1["… more Script /<br/>Alarm Actors"]
    IA --> SA
    IA --> AA
    IA -.-> MORE1

    SEA["Script Execution Actor<br/>(short-lived, per invocation)"]
    AEA["Alarm Execution Actor<br/>(short-lived, per on-trigger invocation)"]
    IA2C["… (Script / Alarm Actors)"]
    SA --> SEA
    AA --> AEA
    IA2 -.-> IA2C

    subgraph STREAM["Site-Wide Akka Stream"]
        PUB["All Instance Actors"]
        STR["Site-Wide Akka Stream<br/>(attribute + alarm state changes)"]
        DBG["Debug view<br/>(instance-level filtering)"]
        PUB -->|publish| STR
        STR -->|subscribe filtered| DBG
    end

    classDef start fill:#d5e8d4,stroke:#82b366,color:#111111;
    classDef proc fill:#dae8fc,stroke:#6c8ebf,color:#111111;
    classDef warn fill:#ffe6cc,stroke:#d79b00,color:#111111;
    classDef alt fill:#e1d5e7,stroke:#9673a6,color:#111111;
    classDef muted fill:#f5f5f5,stroke:#999999,color:#666666;
    class DMS,STR alt
    class IA,IA2,PUB proc
    class SA,AA,DBG start
    class SEA,AEA warn
    class MOREIA,MORE1,IA2C muted
